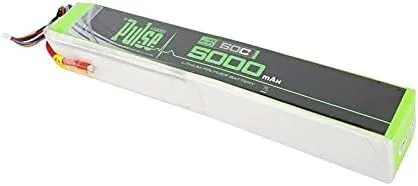

- Pulse Ultra Lipo Battery - Power Redefined. For 700-size to 800-size rc helicopter with 14S config, like T-Rex 700, T-Rex 800, Goblin 700, Goblin 770, Goblin Speed, Goblin Urukay, Protos Max
- Pulse Ultra Batteries have redefined the Remote Control lipo battery industry, with a goal to provide the absolute pinnacle in lithium battery technology
- Pulse Ultra lipo batteries have lived up to their name in the RC industry, providing massive power & performance at cost levels simply unheard of with a battery technology of this capability
- Dedicated within the RC helicopter industry, along with a rapid advancement in the airplane & multi rotor segment, Pulse has quickly become the choice of pro level pilots and beyond, filling the flight line with pilots of all skill levels & demands
- Outfitted to perform, Pulse Ultra is the brand pilots search for, and when compared with other battery manufactures in the marketplace, Pulse continues to provide levels of quality, performance and power that outstrip all others.
14S 51.8V Wiring:
Use a bullet style connector (male and female) to join the two (2) yellow wires - one male, and one female. This connector should be 5mm or larger, which allows the pack to be broken into two 7S packs for charging.
For the positive / negative (red & black) wires, these will solder to a standard connector of your choice, such as an EC5 connector. Once soldering is complete, the (2) yellow wires can be joined together, which will tie both packs into (1) 14S 51.8V battery, outputting 14S 51.8V power via the connector attached to the positive / negative (red & black) wires. This setup negates the need for a series connector, simplifying the wiring setup. You will need to make a custom charge lead for each 7S pack to allow each 7S battery to be charged independently.
Be extremely careful with polarity! Polarity reversals can cause serious damage to the battery, and can inflict serious harm - any such polarity reversals are NOT covered under warranty, and all such battery setups are the sole responsibility for the end user.
Alternative Wiring - (2) 7S 25.9V Setup:
Solder connectors of your choice (such as EC5u2019s) to (1) yellow wire, and (1) black wire, and solder another connector to the yellow & red wire. Be extremely careful with polarity! With this option, you will need to use a series connector to link both battery packs into a 14S 51.8V battery setup. However, charging is simplified, as each 7S pack is easily charged using standard charge leads and balance tabs.
Features:
Large Array of Sizes & Voltages, Light Weight & Low Cost
5C Charge rates for Ultra fast Charge Times & High Discharge Rates
Applications: RC Lipo Battery, RC Helicopter Battery, RC Airplane Battery
Specifications:
Voltage | Cell Count : 51.8V 14S Lipo Battery
Capacity: 5000mAh
Discharge Rate | Max Burst : 50C | 100C
Dimensions: 328 x 50 x 53mm(LxWxH) Weight: 1758g
Balance Tap: JST-XH Connector
