- Package Accessories: Fusion splicer FSM-88S , Fiber Cleaver CT50, Battery Pcak BTR-15, AC Adapter ADC-20, AC Power Cord ACC-14, USB Cable USB-01, Spare Electrode ELCT2-16B, Fusion Splicer Strap ST-02, Fiber Holder Set Plate SP-03
- Hexagonal Wrench HEX-01, V-groove Cleaning Brush VCB-01, Carrying Case CC-39, Work Tray Left WT-09L, Work Tray Right WT-09R, Tripod Screw TS-03, Work Tray J-Plate JP-09, Carrying Case Strap ST-03, Alcohol Dispenser AP-02, Quick Reference Guide QRG-03-E
- Core Alignment Technology The 88S fusion splicer has high precision lenses which provide accurate core to core alignment regardless of core-cladding concentricity error. Also, the lenses allow the splicer to discriminate between fiber types.
- Advanced Image Processing Technology The 88S possesses advanced image processing technology which analyzes the profile of the fiber image as a brightness pattern. The88S finds the true core position and achieves the consistent lower splice loss.
- Fiber Discrimination Function: The 88S fusion splicer automatically identifies the optimum arc discharge parameters in accordance with the fiber type.
- FSM-88S is same fusion splicer as FSM-90S , only model No is differenty, others are same, same accessories, same technology, same appearance.

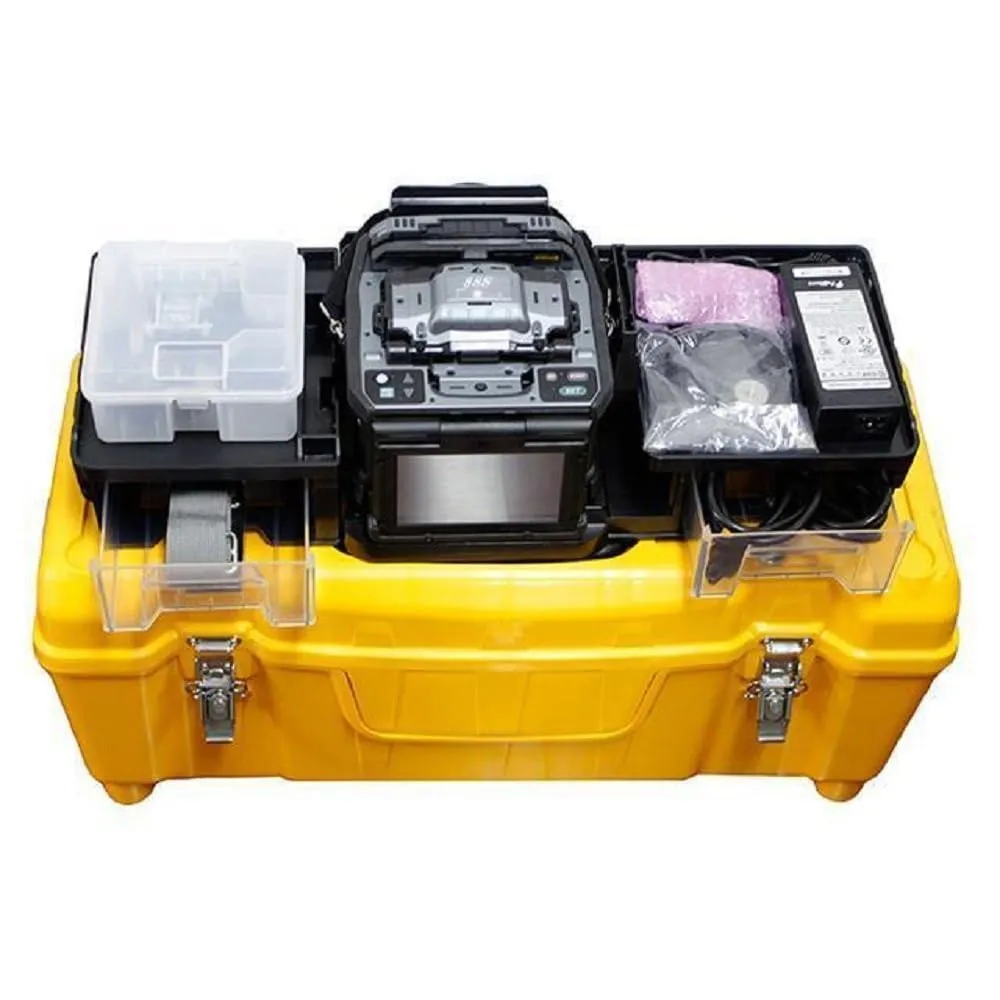

Faster Automation The faster automated features of the 88S fusion splicer which same model as FSM-90S reduce installation times. With this splicer, an operator can complete the entire splicing process from splicing to heating without touching the 88S and only moving the fiber. The fiber retention clamps support the automated operations. When the sheath clamps open automatically after splicing, the fiber retention clamps gently hold the spliced fiber to keep it from flying out. The retention clamps release when the fiber is lifted by the operator. User Friendly: 1. Easy Fiber Protection Sleeve Positioning:The shape of the sheath clamp is optimized for the 60mm length protection sleeve. The length from splice point to the edge of the sheath clamp is 30mm. Therefore, it is easy to center the protection sleeve over the splice by using your finger as the reference splice point. 2. Carrying Case: There are multiple ways to utilize the 88S carrying case. The 88S is ready to use just by opening the case, but it is also possible to use the 88S on top of the carrying case or only with the work tray depending on the work environment. 3. Work Tray: The newly designed work tray has many functions. There are two drawers for storage, and the drawers are large enough to store tools or battery packs. Also, the work tray can be divided in two, so it is configurable to fit your work space. 4. Loose Tube Compatibility: The sheath clamp of the 88S fusion splicer is compatible with loose tube fiber. The Protrusion part on of the sheath clamp for loose tube fiber engages or retracts by simply changing the switch position with your finger.
- Product Dimensions : 25.59 x 18.11 x 19.29 inches; 40.79 Pounds
- Date First Available : August 3, 2018
- Manufacturer : Fujikura
- Country of Origin : Japan
